Robot Description
This robot is in great shape and comes with the FANUC R-30ib controller.Contact Six Axis Solutions for more information or to purchase this robot at Joe@sixaxissolutions.com or call (330) 980-1676.
 |
Robotic Solutions
 |

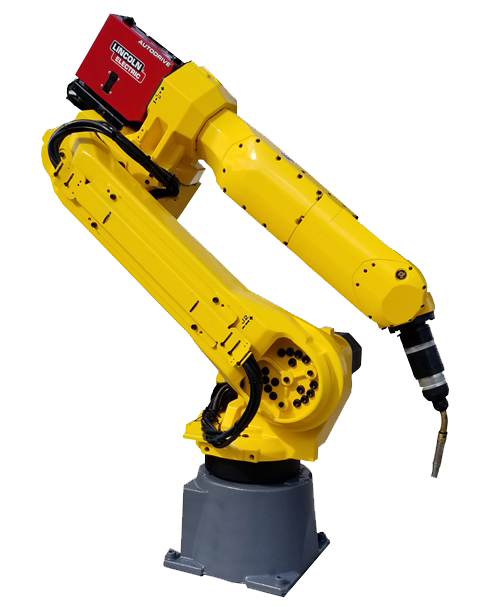

FANUC Arcmate 120ic with R30ib Controller
Contact Six Axis Solutions for more information or to purchase this robot at Joe@sixaxissolutions.com or call (330) 980-1676.
Robot Specifics
| Condition - Tested and Working |
| Price - Call |
Robot Specifications
| Axes 6 |
| Payload: 20 KG (44 lbs) |
| Reach: 1811 MM (71.31 in) |
| Repeatability: ±0.08mm (.0031 in) |
| Robot Mass: 250 KG (551 lbs) |
| Structure: Articulated |
| Robot Motion Speed |
| J1 195 °/s (3.40 rad/s) |
| J2 175 °/s (3.05 rad/s) |
| J3 180 °/s (3.14 rad/s) |
| J4 360 °/s (6.28 rad/s) |
| J5 360 °/s (6.28 rad/s) |
| J6 550 °/s (9.60 rad/s) |
| Robot Motion Range |
| J1 - 370° |
| J2 - 260° |
| J3 - 458° |
| J4 - 400° |
| J5 - 360° |
| J6 - 900° |
